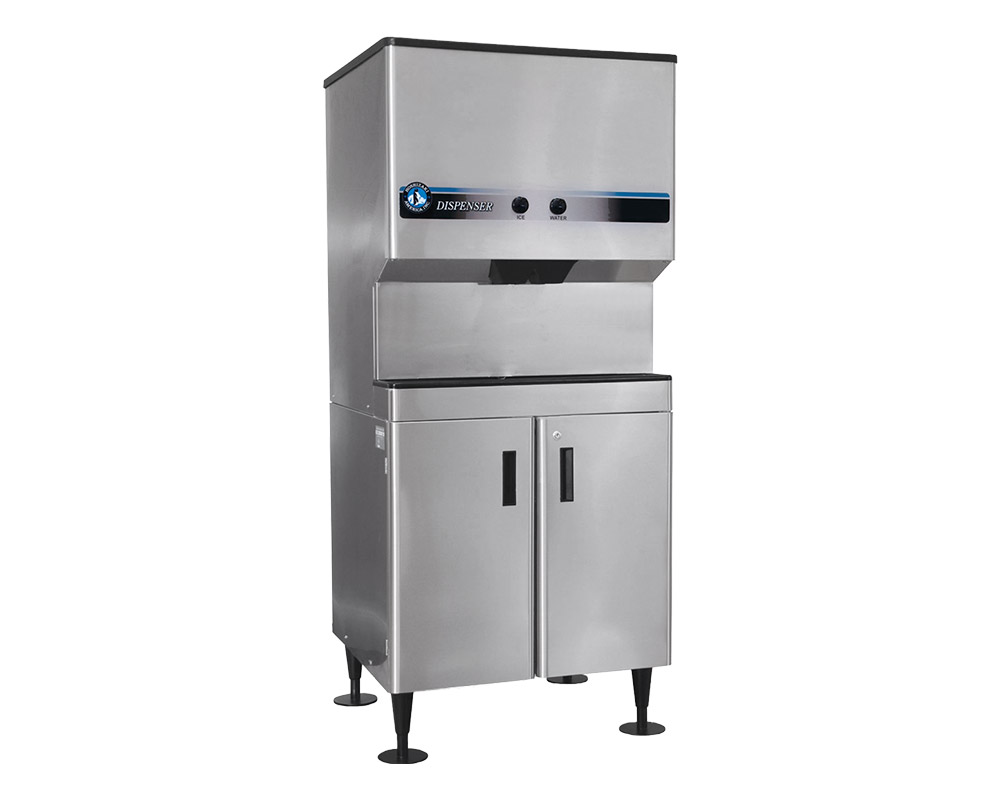

Hoshizaki Ice & Water Dispenser

OEM PARTS & FACTORY-INSIGHT

Used Kitchen EquipmentHoshizaki Ice & Water Dispenser
Contact us FOr More Info

Stainless Steel

Serial Number
Model Number
KML-451-631MA / DM-200B / SD-200
Quick Inquiry

- CRESCENT CUBER ICEMAKER | KML-451MAH

Capable of producing approximately 401 lbs. of crescent cubed ice. This Air-cooled, Low Profile Modular icemaker features a CycleSaver™ design and includes the EverCheck™ alert system making the unit energy efficient and simple to maintain.

- ICE & WATER DISPENSER | DM-200B

Safely store and dispense up to 200 lbs. of ice with this Ice and Water Dispenser. Ice and water dispenser ideal for high volume institutions and hospitality locations! It boasts a seamless bin linear and Foamed-in-place polyurethane insulation in all of the bin walls including the bottom of the unit providing your operation with maximum ice preservation.

- ICE MAKER/DISPENSER STAND WITH LOCKABLE DOORS | SD-200

The SD-200 Icemaker/Dispenser Stand with Lockable Stainless Steel doors. This equipment stand for the DB-200 Series icemaker dispensers features a corrosion-resistant stainless steel exterior and a cabinet base with locking doors.

Features

- KML-451MA Crescent Cuber Icemaker

  • Dimensions: 30″ W x 27-3/8″ D x 22″ H
  • Up to 401 lbs of ice produced per 24 hours
  • Mount 2 units side-by-side for 2x the ice production
  • Produces crescent shaped ice cubes
  • Durable stainless steel exterior
  • Compatible bins & dispensers, sold separately: B-250, B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650, DB-200H, DM-200B
  • EverCheck™ alert system
  • CycleSaver™ design
  • Protected by H-GUARD Plus Antimicrobial Agent
  • R-404A refrigerant ( / )
  • Heat Rejection: BTU/hr
  • Ambient temperature range: 45 – 100°F
  • Water temperature range: 45 – 90°F
  • Water pressure: 10 – 113psig
  • Voltage range: 104 – 127V
  • 9.5 amps (20 Amp Max fuse)
  • 6.1 kwh/100 lbs.@ 90/70
  • Single phase, 115v/60/1
  • Clean ice and easy maintenance lead to longer unit life span

- DM200B Ice & Water Dispenser

  • Dimensions: 30″ W x 28″ D x 36- 3/8 ” H
  • Stores up to 200 lbs of ice
  • Dispenses ice or water with the touch of a button
  • Single phase, 115v/60/1, 8 ft. power cord with NEMA 5-15P plug
  • Push button unique auger agitator design dispenses 7.5 lbs. of ice per minute
  • Foamed-in-place polyurethane insulation
  • Countertop installation, 4″ legs or stand sold separately
  • Accommodates ice machine (sold separately) or manual fill
  • For use with crescent cube ice machines only
  • Top Kit (HS-2036) – to accommodate KM-340M, KM-515M or KM-650M
    ice machines
  • 4″ Die-Cast Legs – (DM LEGS) or cabinet stand (SD-200) optional
  • SD-200 Machine Stand optional
  • 60 W dispensing gear motor, 1.4 Amps, 3/4″ FPT drain
  • Weight: 240

- SD-200 Ice & Water Dispenser Stand w Lockable Doors

  • Dimensions: 30″ W x 28″ D x 32.8125″ H
  • SD-200
  • Heavy duty stands for floor model icemakers/dispensers
  • Corrosion resistant stainless steel exterior
  • Easy cleaning with attractive appearance
  • Cabinet base with locking doors
  • Compatible icemakers/dispensers, sold separately: DM-200B
  • Standard with 6″ Painted flange legs
  • Optional: Four, 6″ stainless steel flange legs package – LP-6 FLANGE LEG
  • ETL Sanitation Listed
  • 125 lbs.
